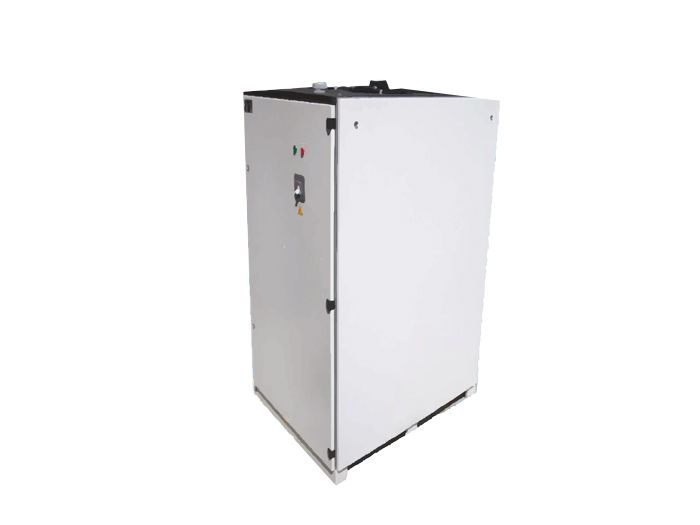

Cataphoresis rectifier is a DC power source that provides the desired voltage and related current power in the cataphoresis surface treatment. Cataphoresis is an electrochemical coating made to prevent the corrosive effect of external factors on the metal surface. The chemical generally used is water-based and is compatible with all metals that conduct electricity.
cataphoresis coating can be done. It can be applied to the metal surface before painting. The purpose of application is to protect the metal against corrosion rather than aesthetic appearance. The most important equipment in the cataphoresis process is the rectifier. Cataphoresis coating rectifiers are fully automatic at the desired volt and current values, within Aygün Elektrik Üretimi.
is manufactured. Our cataphoresis rectifiers, which can be manufactured as air, oil or water cooled with the desired cooling types depending on the working environment, are suitable for all automation systems.
USAGE AREAS AND GENERAL FEATURES
TEKNİK ÖZELLİKLER (TECHNICAL SPECIFICATION) | |
| Giriş Faz Sayısı (Input Phase Number) | 3 Faz |
| Giriş Voltajı (Input Voltage) | 380 Volt (380 Volt) |
| Çıkış Voltajı AC/DC (Output Voltage AC/DC) | 0-500 Volt |
| Çıkış Akımı (Output Current) | 10-2000 Amper |
Çıkış Dalgalanması (Output Ripple) | <%4 |
| Soğutma (Cooling) | Hava-Su-Yağ (Air-Water-Oil) |
| Verim (Efficienc) | %90 |
Çalışma Sıcaklığı (Running Heat) | 0/50®C |
Programlı Çalışma (Programmed Running) | Her proses için özel çalışma programı |
| Transformatör (Transformer) | Yüksek verimli Aygün Transformatör |
Uzaktan Kumanda | Harici operatör paneli RS485 haberleşmeli |
Timer | İstenilen sürede çalışmayı sağlayan zamanlayıcı (Timer for running at the given-desired-intended hourstouchpad) |
Amper Saat Metre (Ampere Clock Meter) | Amper/saat- Amper/dakika (Ampere/hour – Ampere /minute) |
Isı Koruma (Heat Shield) | tristör ve diyot grupları üzerinde ısı sensörleri (Heat sensor on diodes and scr groups) |
Ölçüm (Measurement) | DC akım/gerilim ölçümü (DC current/voltage measurement) |
LCD Ekran (LCD Display) | 4x16 karakter, numerik tuş takımı (4x16 characters numeric key set) |
Otomasyon (Automation) | Modbus, Pronet, Probus, RS485 |
