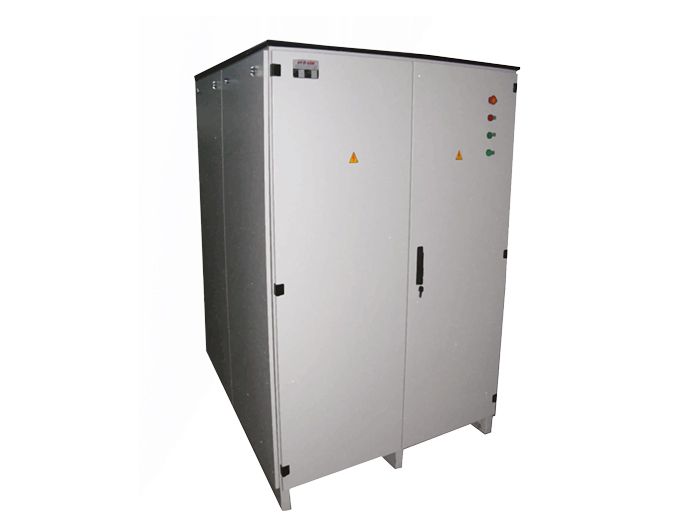

The process made with Anodizing Rectifiers provides both strength and a decorative appearance to aluminum. Anodizing rectifiers, which are one of the most important equipment of aluminum surface treatment, are manufactured fully automatically at the desired volt and current values within Aygün Electrical Equipment. Depending on the working environment
Our anodized rectifiers, which can be produced as air, oil or water cooled with the desired cooling types, are fully compatible with the working processes with the automatic ichron control device and provide ease of operation with the rectifier control, ampere counter, bath temperature control and automatic dosage features. with different features

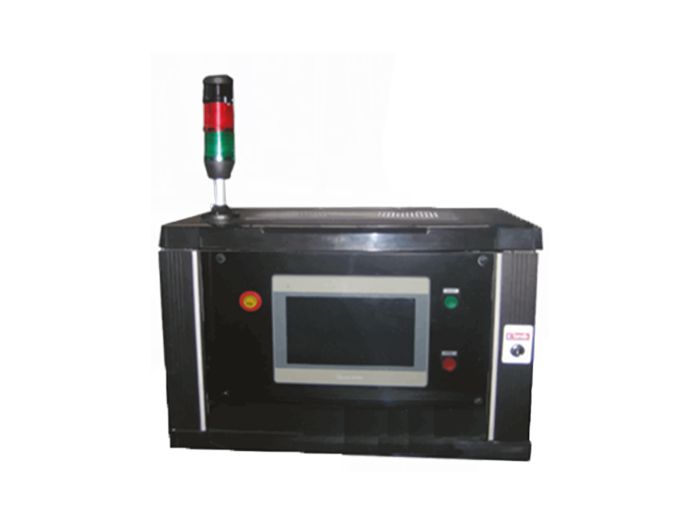

The working program required for aluminum parts is saved in the system memory of the micron control device as a recipe. Whichever part will be coated, the process can be started quickly by loading that recipe. In this way, there is no confusion about which voltage values to use for which part. Production is always provided at the same standard. The operator panel developed for anodized rectifiers has a touchscreen, color and large screen. All program features of the device can be defined from this screen. Calibration processes can be performed. A prescription can be prepared for parts.
USAGE AREAS AND GENERAL FEATURES
TEKNİK ÖZELLİKLER (TECHNICAL SPECIFICATION) | |
| Giriş Faz Sayısı (Input Phase Number) | 3 Faz |
| Giriş Voltajı(Input Voltage) | 380 Volt |
| Çıkış Voltajı AC/DC (Output Voltage AC/DC) | 0-250 Volt |
| Çıkış Akımı (Output Current) | 10-40.000 Amper |
Çıkış Dalgalanması (Output Ripple) | <%4 |
| Soğutma (Cooling) | Hava-Su-Yağ (Air-Water-Oil) |
| Verim (Efficienc) | %90 |
Çalışma Sıcaklığı (Running Heat) | 0/50®C |
Programlı Çalışma (Programmed Running) | Her proses için özel çalışma programı (Specific programs for every process) |
| Transformatör (Transformer) | Yüksek verimli Aygün Transformatör (High-eciency Aygün Transformator) |
Uzaktan Kumanda (Remote Control) | Harici operatör paneli RS485 haberleşmeli(Communucative with RS485 external operator panel) |
Timer(Timer) | İstenilen sürede çalışmayı sağlayan zamanlayıcı (Timer for running at the given-desired-intended hourstouchpad) |
Amper Saat Metre (Ampere Clock Meter) | Amper/saat- Amper/dakika (Ampere/hour – Ampere /minute) |
Isı Koruma (Heat Shield) | tristör ve diyot grupları üzerinde ısı sensörleri (Heat sensor on diodes and scr groups) |
Ölçüm (Measurement) | DC akım/gerilim ölçümü (DC current/voltage measurement) |
LCD Ekran (LCD Display) | 4x16 karakter, numerik tuş takımı (4x16 characters numeric key set) |
Otomasyon (Automation) | Modbus, Pronet, Probus, RS485 |
