HARD CHROMATIC COATING RECTIFIERS
HARD CHROMATIC COATING RECTIFIERS

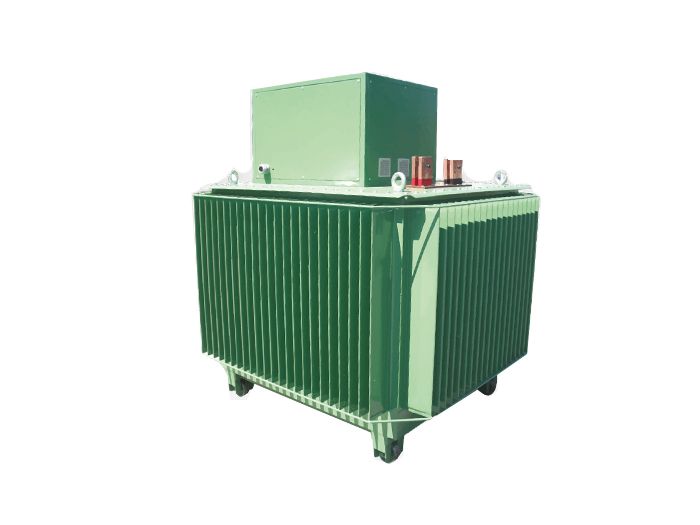

Hard Chrome Rectifier is used in hard chrome plating surface treatments. These processes are to make the worn, damaged or improperly machined valuable machine parts work again in order to extend the life of the new machine parts. Hard chrome plating is widely used in the industry with the important features it brings to the machine parts.

finds use. It has features such as high hardness, low coefficient of friction, high wear resistance, not losing its shine in atmospheric environment, good corrosion resistance, very good adhesion to the part surface, good machinability, and hard chrome plated rectifiers are indispensable elements in providing these features. Hard chrome rectifiers manufactured by Aygün electrical devices provide manual/automatic use. On the electronic control panel, it is possible to set the operating time, set the operating voltage and current values, and perform the operations such as amperage counter. The rectifier control panel, which provides automatic adjustment of operating values ​​according to time, is a good workmate with its ease of use.

USAGE AREAS AND GENERAL FEATURES

  • Hard chrome plating and etc. in coating areas

TEKNİK ÖZELLİKLER
TECHNICAL SPECIFICATION

Giriş Faz Sayısı (Input Phase Number)3 Faz
Giriş Voltajı (Input Voltage)380 Volt(380 Volt)
Çıkış Voltajı AC/DC (Output Voltage AC/DC)0-20 Volt
Çıkış Akımı (Output Current)10-50.000 Amper

Çıkış Dalgalanması (Output Ripple)

<%4

Soğutma (Cooling)

Hava-Su-Yağ (Air-Water-Oil)

Verim (Efficienc)%90

Çalışma Sıcaklığı (Running Heat)

0/50®C

Programlı Çalışma (Programmed Running)

Her proses için özel çalışma programı
(Specific programs for every process)

Transformatör (Transformer)

Yüksek verimli Aygün Transformatör
(High-eciency Aygün Transformator)

Uzaktan Kumanda
(Remote Control)

Harici operatör paneli RS485 haberleşmeli
(Communucative with RS485 external operator panel)

Timer
(Timer)

İstenilen sürede çalışmayı sağlayan zamanlayıcı
(Timer for running at the given-desired-intended hourstouchpad)

Amper Saat Metre (Ampere Clock Meter)

Amper/saat- Amper/dakika (Ampere/hour – Ampere /minute)

Isı Koruma (Heat Shield)

tristör ve diyot grupları üzerinde ısı sensörleri (Heat sensor on diodes and scr groups)

Ölçüm (Measurement)

DC akım/gerilim ölçümü (DC current/voltage measurement)

LCD Ekran
(LCD Display)

4x16 karakter, numerik tuş takımı
(4x16 characters numeric key set)

Otomasyon (Automation)

Modbus, Pronet, Probus, RS485
