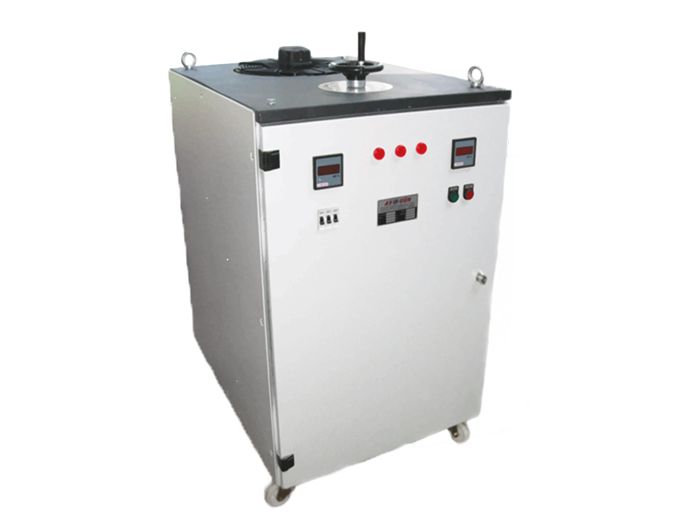

Variac galvano rectifiers, Another type of rectifier used in the metal coating industry is variac galvano rectifiers. The rectifier, named after the variac used to control the input phase, provides the opportunity to make more precise adjustments in voltage adjustment compared to devices with step switch. The rectifier, which allows control over the device in manual use, can optionally be made suitable for remote control with the engine control system. We are at your service with our experience and knowledge in the coating sector with our rectifiers with air, oil cooled options.
USAGE AREAS AND GENERAL FEATURES
TEKNİK ÖZELLİKLER (TECHNICAL SPECIFICATION) | |
| Giriş Faz Sayısı (Input Phase Number) | 1-3 Faz |
| Giriş Voltajı (Input Voltage) | 220-380 Volt 220-380 Volt |
| Çıkış Voltajı (Output Voltage) | 5-25 Volt |
| Çıkış Akımı (Output Current) | 10-3.000 Amper |
Çıkış Dalgalanması (Output Ripple) | <%4 |
| Soğutma (Cooling) | Hava-Yağ Air-Oil |
| Verim (Efficienc) | %90 |
Çalışma Sıcaklığı (Running Heat) | 0/50®C |
| Transformatör (Transformer) | Yüksek verimli Aygün Transformatör (High-efficiency Aygün Transformator) |
| Timer Timer | İstenilen sürede çalışmayı sağlayan zamanlayıcı |
Amper Saat Metre (Ampere Clock Meter) | Amper/saat- Amper/dakika (Ampere/hour – Ampere /minute) |
Isı Koruma (Heat Shield) | Diyot grupları üzerinde ısı sensörleri (Heat sensor on diodes and scr groups) |
Ölçüm (Measurement) | DC akım/gerilim ölçümü (DC current/voltage measurement) |
Ekran (Display) | 4 digit voltmetre ampermetre (4 digit voltmeter amperemeter) |
