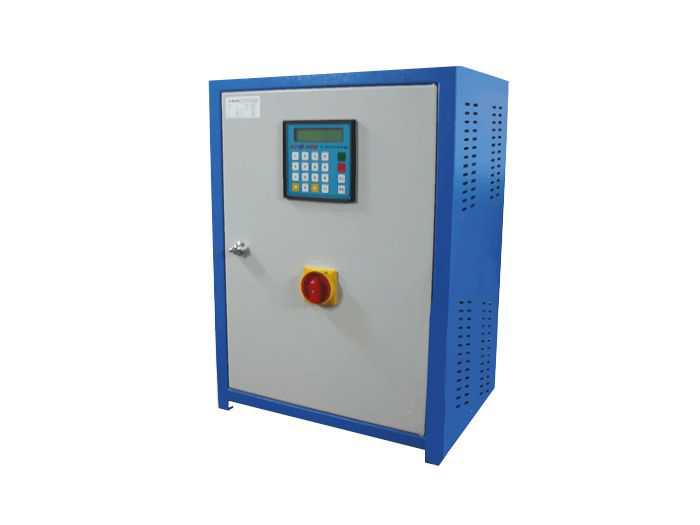

Battery Charger Rectifiers
Battery charger rectifiers are power electronic devices designed
to safely and reliably charge battery banks used in uninterrupted
DC power systems.
Today, many different battery types with varying technologies
and capacities are used. Since each battery technology has a
different charging characteristic, controlled application of
the correct current and voltage values is important for battery
performance and service life.
At Aygün Electric, we manufacture battery charger rectifiers
with the required current and voltage values, including
fixed-output, adjustable-output, voltage-controlled,
current-controlled, and microprocessor-controlled models.
Thanks to operating programs suitable for different battery types,
time-controlled charging options, and automation integration,
systems can be configured according to the requirements of
their intended application.
BATTERY CHARGING TECHNOLOGY
Controlled Charging,
Reliable DC Power
Provides a reliable solution for industrial charging applications
through programmable operation and current and voltage control
suitable for different battery technologies.
220V
UP TO DC OUTPUT
BATTERY MANAGEMENT
Charging Suitable for Different Battery Types
The appropriate charging characteristics and operating program
can be determined according to the battery type, capacity,
and operating conditions.
01
Battery-Specific Programs
Suitable current, voltage, and charging times can be
programmed for different battery technologies.
02
Current and Voltage Control
The charging process can be carried out in a controlled
manner using fixed or adjustable current and voltage values.
03
Microprocessor Control
In microprocessor-controlled models, the charging process
can be automatically monitored and managed.
04
Automation Integration
Can be integrated with different systems through
Modbus, Profinet, Profibus, and RS485 communication options.
UNINTERRUPTIBLE POWER SYSTEMS
Safe and Controlled Charging of Battery Banks
Proper charging of batteries used in industrial facilities,
energy systems, and uninterruptible power applications is
important for maintaining system continuity. Battery charger
rectifiers provide DC output suitable for the requirements
of the battery bank, ensuring a controlled and reliable
charging process.
DC OUTPUT OPTIONS
Different System Voltages
Various nominal DC output voltages can be provided for different
battery banks and industrial applications.
01
12 Volt
02
24 Volt
03
36 Volt
04
48 Volt
05
72 Volt
06
80 Volt
07
110 Volt
08
220 Volt
APPLICATION AREAS
Areas of Use
Can be used in various facilities and systems where battery
banks are present and reliable DC power is required.
01
Uninterruptible Power Systems
02
Industrial Facilities
03
Energy Systems
04
Systems with Battery Banks
TECHNICAL SPECIFICATIONS
Technical Specifications
Current, voltage, and control features can be configured
according to the technical requirements of the battery bank
to be used.
Input Phase Number
1 - 2 - 3 Phase
Input Voltage
220 - 380 Volt
Output Voltage
12 - 24 - 36 - 48 - 72 - 80 - 110 - 220 Volt
Output Current
10 - 400 Ampere
Operating Temperature
0 / +50 °C
Programmed Operation
Specific charging program for each battery type
Transformer
High-Efficiency Aygün Transformer
Remote Control
External operator panel with RS485 communication
Timer
Programmable operating timer for the required duration
Thermal Protection
Temperature sensors on thyristor and diode groups
Measurement
DC current / voltage measurement
LCD Display
4x16 character display with numeric keypad
Automation
Modbus, Profinet, Profibus, RS485
BATTERY CHARGER RECTIFIER FOR YOUR PROJECT
Let’s Determine the Right Charging System for Your Battery Bank
Share your battery type, system voltage, capacity,
and required control features with us.
