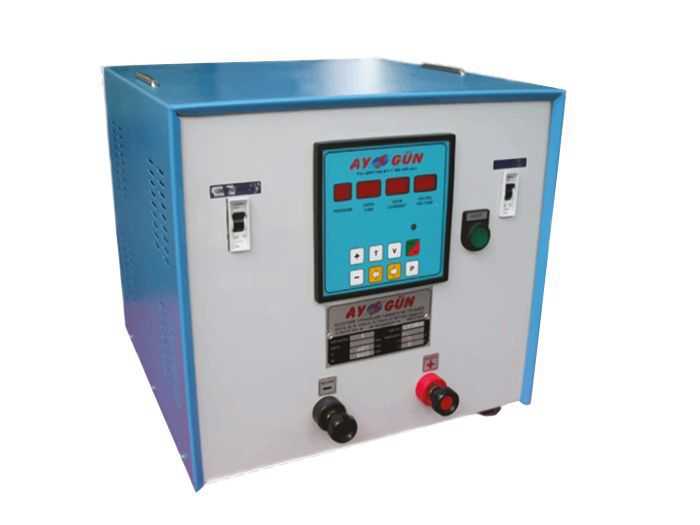

Electrophoretic Lacquer Rectifiers
Electrophoretic lacquer rectifiers are DC power supplies used in
surface treatment technologies known as electrophoretic coating.
This coating method is particularly preferred for sensitive surfaces
that require protection against corrosion.
At Aygün Electric, we offer controlled and easy-to-use rectifier
solutions suitable for low and medium power requirements in
electrophoretic lacquer coating processes.
Electrophoretic lacquer rectifiers are supplied with
lacquer waiting time, ramp function, and programmable
operating parameters as standard. These features enable
the different stages of the process to be carried out in a
controlled manner.
Electrophoretic lacquer rectifiers manufactured with Switch Mode
technology can be configured for different coating applications,
offering high efficiency, compact design, and ease of use.
ELECTROPHORETIC LACQUER TECHNOLOGY
Controlled Coating Power
for Sensitive Surfaces
Provides stable and controlled DC output for electrophoretic
lacquer processes with programmable operation, ramp control,
and Switch Mode technology.
450V
UP TO OUTPUT
PROCESS CONTROL
Programmable and Controlled Operation
Waiting, ramp-up, and operating times required in the electrophoretic
lacquer process can be controlled directly through the unit.
01
Lacquer Waiting Time
Waiting times required before or during the process
can be programmed.
02
Ramp Function
The output value can be increased to the desired level
in a controlled manner within a specified period.
03
Programmed Operation
Operating parameters can be defined for different
processes to enable controlled production.
04
Switch Mode Technology
Provides reliable operation through Switch Mode technology,
offering a compact structure and high efficiency.
SURFACE PROTECTION
Controlled Electrophoretic Coating for Sensitive Surfaces
Electrophoretic lacquer coating is particularly preferred in
applications where protecting the surface against external
factors is important. Controlled current and voltage supplied
by the rectifier contribute to carrying out the process in a
consistent, repeatable, and manageable manner.
APPLICATION AREAS
Areas of Use
Can be used in electrophoretic lacquer coating and similar
controlled surface treatment applications.
01
Electrophoretic Lacquer Coating
02
Precision Surface Coating
03
Corrosion Protection Applications
04
Other Coating Processes
TECHNICAL SPECIFICATIONS
Technical Specifications
Technical values and operating parameters can be configured
in different ways according to application requirements.
Input Phase Number
1 - 3 Phase
Input Voltage
220 - 380 Volt
Output Voltage
50 - 450 Volt
Output Current
5 - 150 Ampere
Operating Temperature
0 / +50 °C
Programmed Operation
Specific operating program for each process
Transformer
High-Efficiency Aygün Transformer
Remote Control
External start button
Timer
Programmable operating timer for the required duration
Ampere-Hour Meter
Ampere / Hour - Ampere / Minute
Thermal Protection
Temperature sensors on diode groups
Measurement
DC current / voltage measurement
ELECTROPHORETIC LACQUER RECTIFIER FOR YOUR PROJECT
Let’s Determine the Right Rectifier Solution for Your Coating Process
Share your required current, voltage, operating program,
and control requirements with us.
