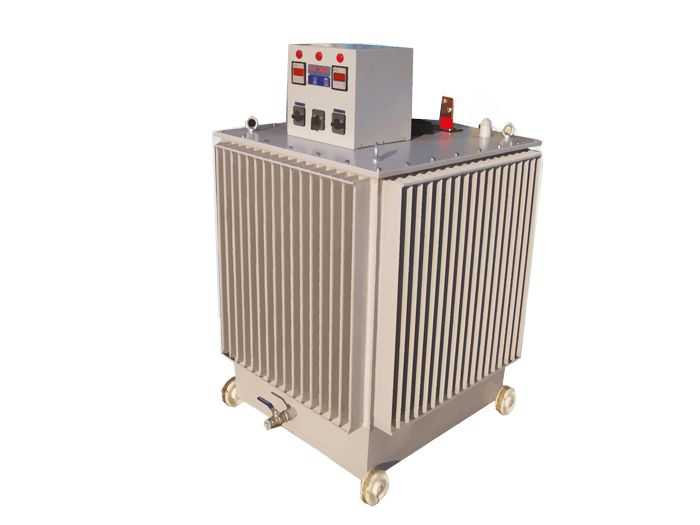

Stepped Cam Switch Rectifiers
In stepped cam switch rectifiers, current and voltage adjustment
is performed manually using two five-position cam switches.
This structure provides a total of
25 different current and voltage operating ranges.
The main difference between stepped switch rectifiers and other
rectifier types is that output current and voltage adjustment is
performed through a mechanical cam switch system instead of
electronic control.
It offers an economical, simple, and easy-to-use solution for
plating processes where precise current or voltage control is
not required. Thanks to its simple control structure, it can
be operated quickly and easily by the operator.
Stepped cam switch rectifiers manufactured by Aygün Electric
can be produced with air or oil cooling options
depending on the operating environment and required capacity.
STEPPED CONTROL TECHNOLOGY
Simple Operation,
25 Different Operating Steps
Provides reliable and practical control through its mechanical
cam switch structure in plating applications that do not require
precise adjustment.
25
DIFFERENT STEPS
CAM SWITCH CONTROL
Manual and Stepped Operation
Different current and voltage levels can be selected manually
using a combination of two five-position switches.
01
25 Different Steps
Two five-position cam switches provide 25 different
current and voltage combinations.
02
Manual Control
Operating values can be easily adjusted directly
through the mechanical switches on the unit.
03
Simple and Durable Structure
Provides simple and reliable operation in applications
where complex control systems are not required.
04
Suitable for Plating Processes
Can be used in various metal plating applications
where precise adjustment is not required.
PRACTICAL CONTROL
An Economical Solution for Processes
That Do Not Require Precise Control
Stepped cam switch rectifiers are developed for plating lines
where continuous and precise adjustment of operating values
is not required. Thanks to the mechanical switch structure,
the operator can quickly switch between different operating
steps and easily select the output value required for the process.
APPLICATION AREAS
Areas of Use
Stepped cam switch rectifiers can be used in various metal
plating and surface treatment processes.
01
Nickel Plating
02
Chrome Plating
03
Copper Plating
04
Electropolishing
05
ABS Plating
06
Degreasing
07
Other Plating Processes
COOLING OPTIONS
Cooling Suitable for Operating Conditions
The units can be manufactured with air or oil cooling
according to capacity and operating environment.
01
Air Cooled
02
Oil Cooled
TECHNICAL SPECIFICATIONS
Technical Specifications
Technical values can be configured in different ways
according to the requirements of the plating process.
Input Phase Number
1 - 3 Phase
Input Voltage
220 - 380 Volt
Output Voltage
5 - 25 Volt
Output Current
10 - 3,000 Ampere
Operating Temperature
0 / +50 °C
Transformer
High-Efficiency Aygün Transformer
Timer
Programmable operating timer for the required duration
Ampere-Hour Meter
Ampere / Hour - Ampere / Minute
Thermal Protection
Temperature sensors on diode groups
Measurement
DC current / voltage measurement
Display
4-digit voltmeter / ammeter
